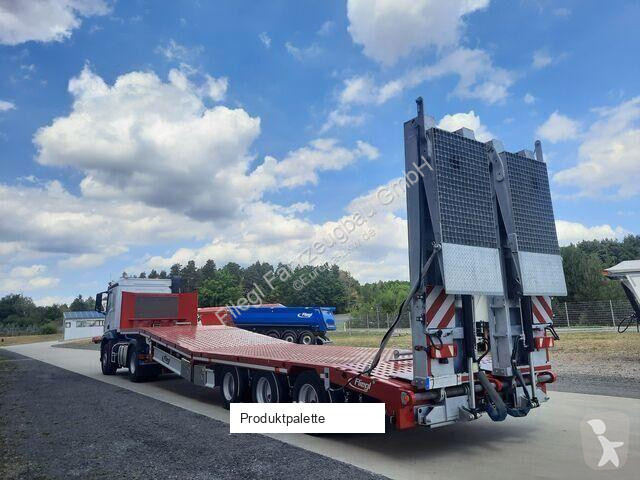

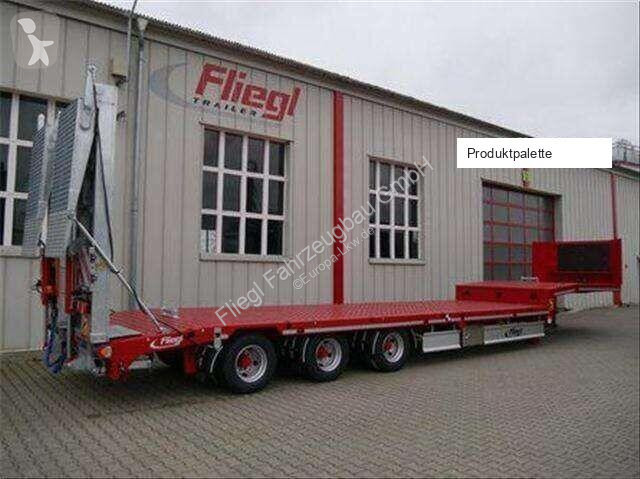

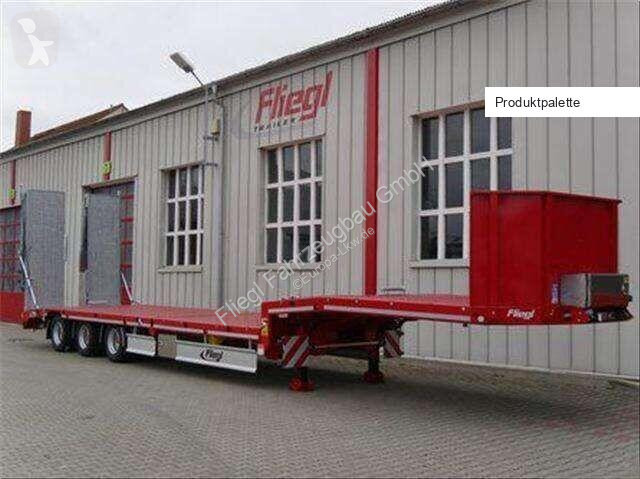

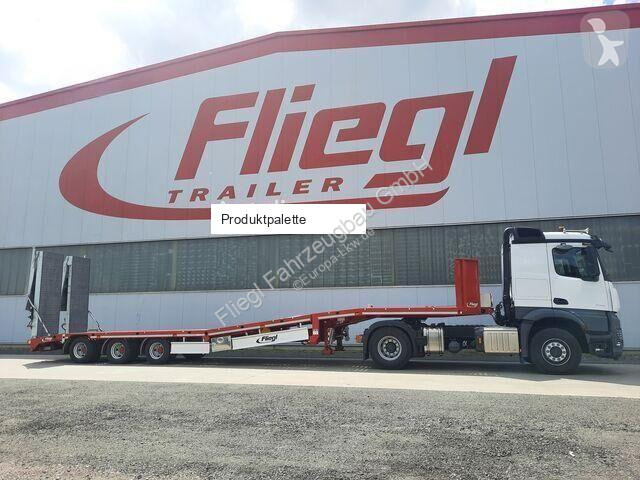

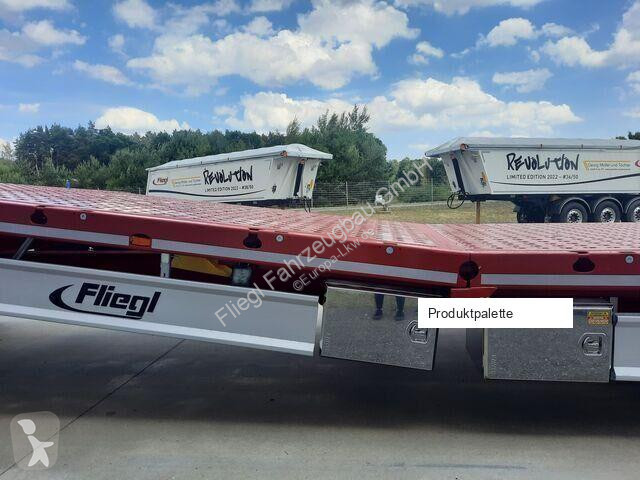

Новий Fliegl Liftmaster трал напівпричіп SDS 470 T

07819 Triptis

Основна інформація
Номер клієнта:	Produktpalette
Номер оголошення : N° :refSite	11509143
Тип	--
Марка	Fliegl
Сімейство (марка : Fliegl)	Liftmaster
Модель	SDS 470 T
Стан	Новий
Дата 1-ї реєстрації
Країна	НІМЕЧЧИНА
Виробник	Fliegl

Коробка передач та трансмісія
Деталі коробки передач	Boîte automatique

Зауваження
Localisation : • Allemagne Triptis Carrosserie : • 9,35 m × 2,52 m × 0,9 m Équipement supplémentaire : • boîte à outils Description: Lowbed Functionality: fully functional Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland Chassis: Low-loader semi-trailer Tie-down points: Low-loader Gooseneck: 5 pairs of tie-down points recessed in the outer frame, each with 5 tons. 2 pairs of tie-down points in the middle, each with 5 tons. 1 pair of tie-down eyes recessed at the top and outside in the outer frame in the neck slope, each with 10 tons Main platform: 4 pairs of tie-down points recessed in the outer frame, each with 5 tons. 4 pairs of tie-down points in the middle, each with 5 tons. 1 pair of tie-down eyes recessed at the top and outside in the outer frame, each with 10 tons Rear platform: 4 pairs of tie-down points recessed in the outer frame, each with 5 tons. 5 pairs of tie-down points in the middle, each with 5 tons. 4 pairs of tie-down eyes recessed at the top and outside in the outer frame, each with 10 tons Achsenkonfiguration: 3 axles Custom-Tailored Transport Solution Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications Steel welded construction kingpin plate with interchangeable 2 kingpins and 2 kingpin positions 24 tons 2-speed landing gear single-sided operation with semi-circular lower section and straight connection plate with stroke compensation Foldable rear supports Wheel chocks with holder Aluminum side underrun protection Splash guards in front of the 1st axle and behind each axle with anti-spray according to EC stainless steel w=600/h=400/d=500 mm with polished door lockable Hydraulic lift table after gooseneck approximately 3000 mm long hydraulically raised for crossing the gooseneck with mechanical locking in the raised position. Operated with a wireless remote control Electric winch 24 volts pulling force 8165 kg mounted centrally at the front on the gooseneck loading area in a stainless steel box with a door (if technically possible further review required) operated with a wireless remote control cable length 35 m x approx. 10 mm with roller cable guide and removable guide rollers on the gooseneck and rear slope Axles + Suspension SAF drum brake axles Axle/chassis laser-measured reducing tire wear and fuel consumption Last axle with steered trailing arm with automatic reversing lock via reversing light and additional locking function on the vehicle via a hand button Air suspension with lift/lower valve with holding function for lowering + auto-reset function Wheels and Tires 235 / 75 R 17.5 According to the manufacturer''s choice Steel rims in twin arrangement factory silver Braking System 2-line compressed air brake system Nj Awr Ehei Ri E Uexjwk Spring brake parking brake Vehicle - Driving Stability System Axle load recognition via EBS-CAN bus signal for display on the driver''s cab truck must be appropriately prepared no truck installation (no calibrated scale) 2 fail-safe coupling heads in front without connection cable Electronic Braking System with EBS socket in front without connection cable Electrical System 24 volts multi-chamber lights yellow LED lighting on the sides 2 white position lights in front 2 white/red side marker lights in the rear Lights completely in LED version 2 x 7-pin and 1 x 15-pin fail-safe sockets in front Additional LED work lights at the rear switched via reversing light LED rotating beacon with holder switched via parking light Pair of warning signs double LED illuminated and extendable to 3000 mm Floor Gooseneck with Mega Grip covered with interlocking grating/low-loader platfo
Переглянути все

Зауваження

Localisation :
  • Allemagne Triptis
Carrosserie :
  • 9,35 m × 2,52 m × 0,9 m
Équipement supplémentaire :
  • boîte à outils

Description: Lowbed
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
Chassis: Low-loader semi-trailer
Tie-down points: Low-loader
Gooseneck: 5 pairs of tie-down points recessed in the outer frame, each with 5 tons. 2 pairs of tie-down points in the middle, each with 5 tons. 1 pair of tie-down eyes recessed at the top and outside in the outer frame in the neck slope, each with 10 tons
Main platform: 4 pairs of tie-down points recessed in the outer frame, each with 5 tons. 4 pairs of tie-down points in the middle, each with 5 tons. 1 pair of tie-down eyes recessed at the top and outside in the outer frame, each with 10 tons
Rear platform: 4 pairs of tie-down points recessed in the outer frame, each with 5 tons. 5 pairs of tie-down points in the middle, each with 5 tons. 4 pairs of tie-down eyes recessed at the top and outside in the outer frame, each with 10 tons
Achsenkonfiguration: 3 axles
Custom-Tailored Transport Solution
Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications
Steel welded construction
kingpin plate with interchangeable 2 kingpins and 2 kingpin positions
24 tons
2-speed landing gear
single-sided operation
with semi-circular lower section and straight connection plate
with stroke compensation
Foldable rear supports
Wheel chocks with holder
Aluminum side underrun protection
Splash guards in front of the 1st axle and behind each axle with anti-spray
according to EC
stainless steel
w=600/h=400/d=500 mm
with polished door
lockable
Hydraulic lift table after gooseneck
approximately 3000 mm long
hydraulically raised for crossing the gooseneck
with mechanical locking in the raised position. Operated with a wireless remote control
Electric winch
24 volts
pulling force 8165 kg
mounted centrally at the front on the gooseneck loading area
in a stainless steel box with a door (if technically possible
further review required)
operated with a wireless remote control
cable length 35 m x approx. 10 mm
with roller cable guide and removable guide rollers on the gooseneck and rear slope
Axles + Suspension
SAF drum brake axles
Axle/chassis laser-measured
reducing tire wear and fuel consumption
Last axle with steered trailing arm
with automatic reversing lock via reversing light
and additional locking function on the vehicle via a hand button
Air suspension with lift/lower valve
with holding function for lowering + auto-reset function
Wheels and Tires
235 / 75 R 17.5
According to the manufacturer''s choice
Steel rims in twin arrangement
factory silver
Braking System
2-line compressed air brake system
Nj Awr Ehei Ri E Uexjwk
Spring brake parking brake
Vehicle - Driving Stability System
Axle load recognition via EBS-CAN bus signal
for display on the driver''s cab
truck must be appropriately prepared
no truck installation (no calibrated scale)
2 fail-safe coupling heads in front
without connection cable
Electronic Braking System with EBS socket in front
without connection cable
Electrical System
24 volts
multi-chamber lights
yellow LED lighting on the sides
2 white position lights in front
2 white/red side marker lights in the rear
Lights completely in LED version
2 x 7-pin and 1 x 15-pin fail-safe sockets in front
Additional LED work lights
at the rear
switched via reversing light
LED rotating beacon with holder
switched via parking light
Pair of warning signs
double LED illuminated and extendable to 3000 mm
Floor
Gooseneck with Mega Grip
covered with interlocking grating/low-loader platfo
